CMDBuild was developed applying the most advanced design criteria and the best available technologies.

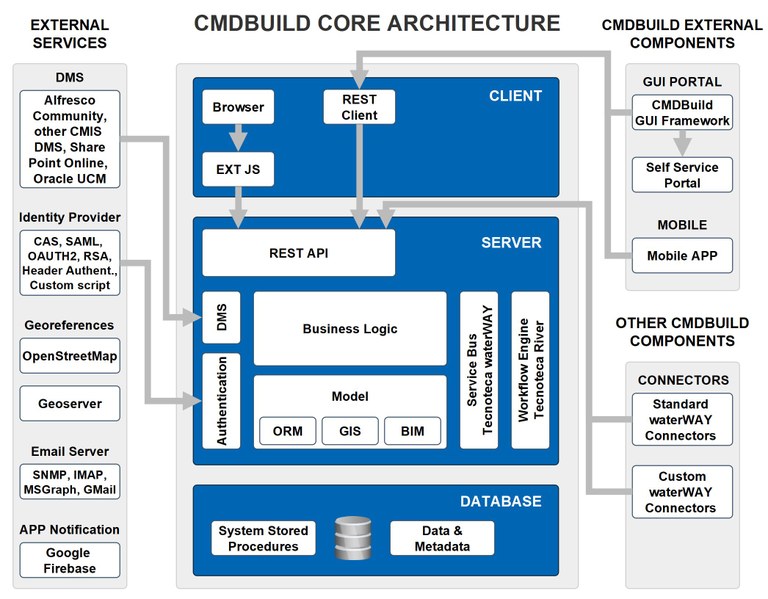

The following schema helps you to understand the CMDBuild architecture, in terms of components and interaction ways.
Please note:
- in the middle, in blue, the components of the central system ("core") in three levels: presentation, business logic and database
- on the left, some external services used by CMDBuild in order to carry on features which are covered by available solutions (suggested by Tecnoteca or available in the prior infrastructure)
- on the right, CMDBuild external services, made available for the implementation of additional user interfaces and interoperability solutions with other systems
